Door detectors

B SERIES

EUROPEAN BEST SELLER

EN 81-20 EN 81-70

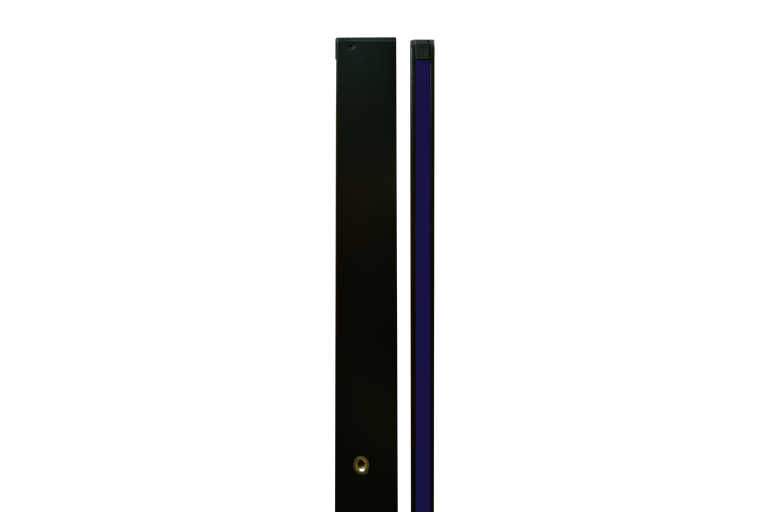

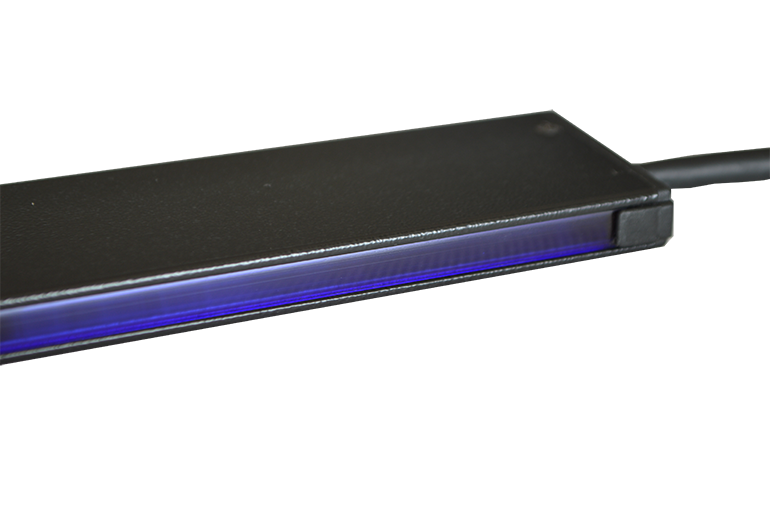

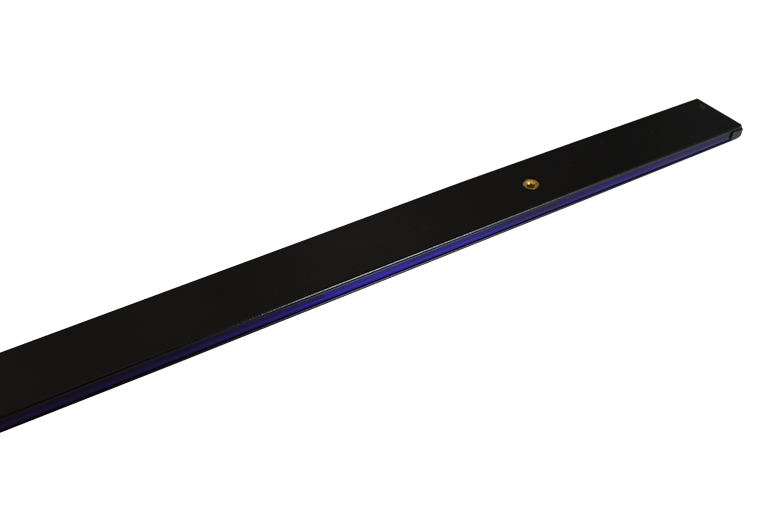

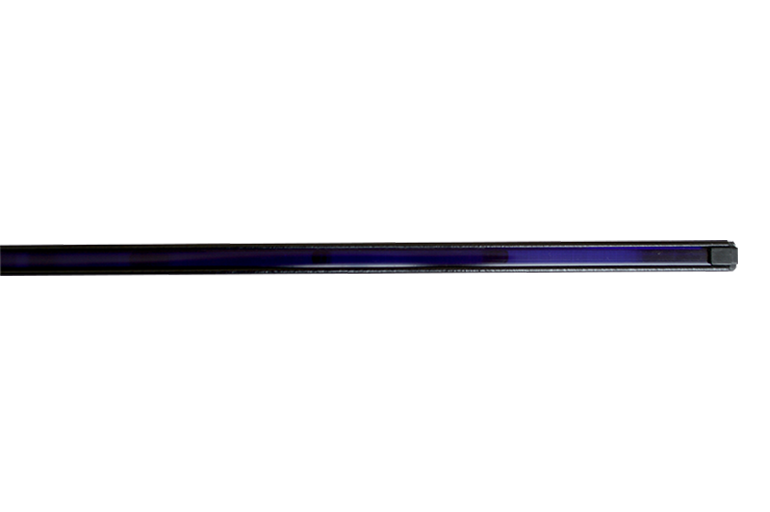

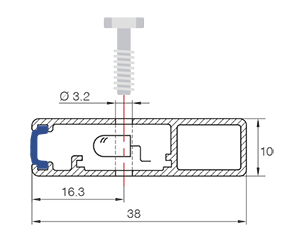

The B profile is a robust and versatile aluminium profile, suitable for installation in both static and dynamic locations.
There are a wide range of fixing clips and brackets available.

Includes car top box, cables, mounting accessories and heavy-duty packaging

Characteristics

  • 22/46/94/154/174/194/234 crossed beams
  • Standard height 2000mm/1950mm
  • Other heights 520mm/1000mmm/1950mm/2000mm
  • Detecting range 4000mm
  • Immune to sunlight
  • IP54 rating
B SERIESDiodesFaisceauxHauteur TotaleHauteur de détection AlimentationAuto-maskingEN 81-70EN 81-20Fiches produitGuide d'installation
03.G5.B64.WES.AC22016641000mm20 - 940mm220 Vac
03.G5.B64.WES.DC2416641000mm20 - 940mm24 Vdc
03.G5.B94.NPN/NC17942000mm20 - 1841mm- (NPN/NC)
03.G5.B94.PNP/NC17942000mm20 - 1841mm- (PNP/NC)
03.G5.B94.PNP/NO17942000mm20 - 1841mm- (PNP/NO)
03.G5.B154.NPN.NO321542000mm20 - 1841mm- (NPN/NO)
03.G5.B154.TNC321542000mm20 - 1841mm
03.G5.B154.WES.AC220321542000mm20 - 1841mm220 Vac
03.G5.B154.WES.DC24321542000mm20 - 1841mm24 VDC
03.G5.B174.AC220361742000mm20 - 1665mm220 VAC
03.G5.B174.DC24361742000mm20 - 1665mm24 VDC
03.G5.B174.FD2.220361742000mm20 - 1665mm220 VAC
03.G5.B174.FD2.24361742000mm20 - 1665mm24 VDC
03.G5.B234.AC220482342000mm20 - 1900mm220 VAC
03.G5.B234.DC24482342000mm20 - 1900mm24 VDC
03.G5.B234.GDC.4A482342000mm20 - 1900mmABlindée
03.G5.B234.NUDE.482342000mm20 - 1900mm-
03.G5.B.94.AC22017942000mm20 - 1841mm220 VAC
03.G5.BAM194FED220401942000mm20 - 1841mm220 VAC
03.G5.BAM.94.DC2417942000mm20 - 1841mm24 VDC
03.G5.BAM.94.KAP.17942000mm20 - 1841mm
03.G5.BMX194.FED401942000mm20 - 1855mm
03.G5.BSS.94.AC22017941800mm20 - 1670mm220 VAC
03.G5.BSS.94.DC2417941800mm20 - 1670mm24 VDC
B SERIES - Special ModelsDiodesBeamsTotal HeightDetection HeightPower SupplyData SheetManual
03.G5.B22.520.XN5.230822520mm
03.G5.B46.1000.XN5.23016461000mm
