Door detectors

P SERIES

BEST SELLER IN NORTH AMERICA

EN 81-70 EN 81-20

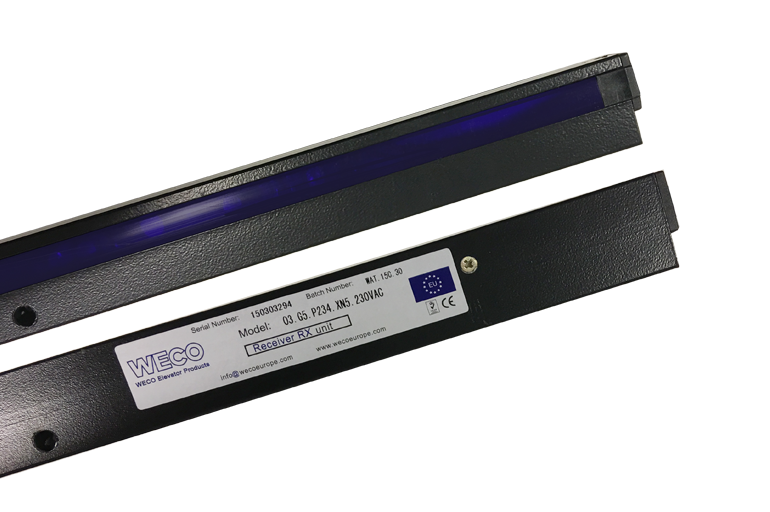

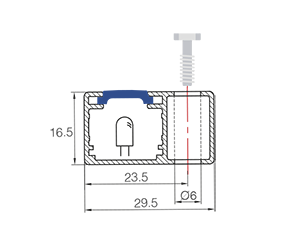

The P profile is the leading product in the North American market. It is meant for large and heavy doors that have a clutch in the middle of the panel.
It was designed for GAL type doors with heavy duty construction and a full-length box section. It is suitable for wall mounting in elevators without car doors.
It can be installed in both static and dynamic locations.

Includes car top box, cables, mounting accessories and heavy-duty packaging.

Characteristics

  • 154/234 crossed beams
  • Standard height 2000mm
  • Detecting range 4000mm
  • Immune to sunlight
  • IP54 rating
P SERIESDiodesBeamsTotal HeightPower SupplyEN 81-20EN 81-70Data SheetManual
03.G5.P234.DC24482342000mm
03.G5.P234.AC220482342000mm
03.G5.P234.GDC.4A482342000mm
